Lighting

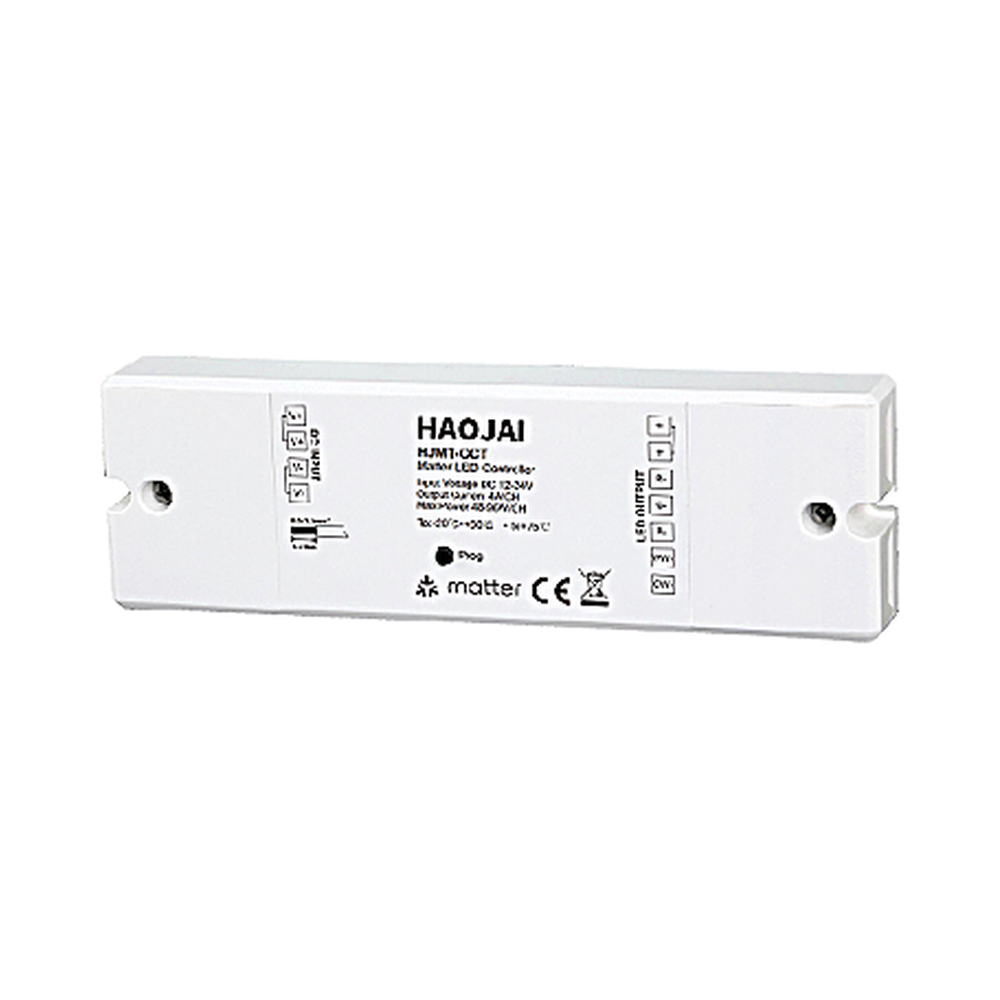

HAOJAI Tunable-White LED Strip Dimming Controller
HJMT-CCT
5 channels × 4 A high-power output — tune your tunable-white LED strips as you like. Native Matter direct connection, no gateway · 12–24 V wide-voltage constant voltage · Matter certified.
The details, clearly.
Made for
your plans.
A Matter over Thread based CCT LED strip controller: 12–24 V DC constant-voltage input, 12/24 V constant-voltage output, 5 channels at max. 4 A each and a max. total load of 20 A — easily driving high-power tunable-white (CCT) LED strips. Matter certified; scan to pair with Apple Home, Google Home, Amazon Alexa and other mainstream ecosystems, used with a Thread border router (e.g. HomePod mini, Apple TV 4K, Google Nest Hub) — no dedicated gateway. Brightness and colour temperature adjust smoothly, with OTA firmware updates.
Specifications refer to the listed model. Confirm the regional variant and installation requirements before ordering.
| Model | HJMT-CCT |
|---|---|
| Product positioning | Matter over Thread CCT LED strip controller (tunable white) |
| Power input | DC 12–24 V |
| Output | 12/24 V constant voltage, 5 channels, max. 4 A per channel |
| Max. total load | 20 A |
| Power per channel | 48–96 W per channel (depending on input voltage) |
| Compatible luminaires | Tunable-white (CCT) LED strips; supports RGB+CCT strip applications |
| Communication protocol | Matter over Thread (IPv6 Thread); Matter certified |
| Operating requirements | Requires a Thread border router (HomePod mini / Apple TV 4K / Google Nest Hub, etc.) |
| Operating temperature | −20 °C to +50 °C |
| Ingress protection | IP20 (indoor installation) |
| Dimensions | 145 × 46.5 × 16 mm |
Before you begin.
Your home platform
Use a Matter-compatible controller for your chosen smart home platform. Available controls and automations depend on platform support.
Your Thread network
This product uses Matter over Thread. A compatible Thread border router connects it to the rest of your home network.
Your installation
For mains-powered products, use a qualified installer and confirm supply, load and mounting requirements before installation.
